Yes, it goes back to the filter and yes, it makes more sense than waiting another month or so!
I'm not good with Math, so I've measured the fin area and got 145x 55 for OEM and 185 x 61 for this one that has the wrong ports.
I'm coming up with an incredible 41.5 percent increase and I think I may have missed read my scribbling
I'm coming up with an incredible 41.5 percent increase and I think I may have missed read my scribbling
So assuming the Math is correct as it has not been challenged!
I drilled and Tapped the Ports to 12mm x 1.25 and ordered a new one just in case I make a mess of it,
Which not that surprisingly did occur forcing me to cut one thread 1/4 NPT ( more contamination ) which has also committed it to being fitted in one specific orientation.
Lucky I ordered the second Cooler By the time I get hose and now a NPT fitting it will be half way here, last one took about 2 and a half weeks
I drilled and Tapped the Ports to 12mm x 1.25 and ordered a new one just in case I make a mess of it,
Which not that surprisingly did occur forcing me to cut one thread 1/4 NPT ( more contamination ) which has also committed it to being fitted in one specific orientation.
Lucky I ordered the second Cooler
By the time I get hose and now a NPT fitting it will be half way here, last one took about 2 and a half weeks
Just measured the radiator that has just arrived.I'm not good with Math, so I've measured the fin area and got 145x 55 for OEM and 185 x 61 for this one that has the wrong ports.
I'm coming up with an incredible 41.5 percent increase and I think I may have missed read my scribbling
Fin area is 185x105. That's a whopping 140% increase!
I guess now I have to find a way to WARM the engine...
PS. Just checked the connection, I got lucky and the sent they right M12 one!
Last edited:
Disregard the Factory recommended Oil QuantityJust measured the radiator that has just arrived.
Fin area is 185x105. That's a whopping 140% increase!
I guess now I have to find a way to WARM the engine...
PS. Just checked the connection, I got lucky and the sent they right M12 one!
Bracket for Oil Cooler reversed. I did straighten it after !
Adaptor Bracket from 3mm Ali.
Frame Weight reduction! to allow clearance for the lower fitting.
Cooler is high enough to enable the Inspection plug to be removed for Timing Marks to be observed.
Okay I realize that the Angle is not optimal, but with 40% extra area and the extra Oil capacity I should still be in front.
Now to finish off the Hoses and see how neat they can be done!
Adaptor Bracket from 3mm Ali.
Frame Weight reduction! to allow clearance for the lower fitting.
Cooler is high enough to enable the Inspection plug to be removed for Timing Marks to be observed.
Okay I realize that the Angle is not optimal, but with 40% extra area and the extra Oil capacity I should still be in front.
Now to finish off the Hoses and see how neat they can be done!
You should make a kit and start selling it!View attachment 732View attachment 733View attachment 734View attachment 735View attachment 736View attachment 737View attachment 738443 gets
a new Cooler. I think I am getting better at it
Moto Ölkühler Motorrad Öl Kühler Dirt Bike 2t 250cc Motor Universal 4T 5 Reihe Kühlung Ersatz Fit m10 M12 Motocross - AliExpress 201355758
Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com
1. Cooler, you should choose the 12mmx 1.25 x1

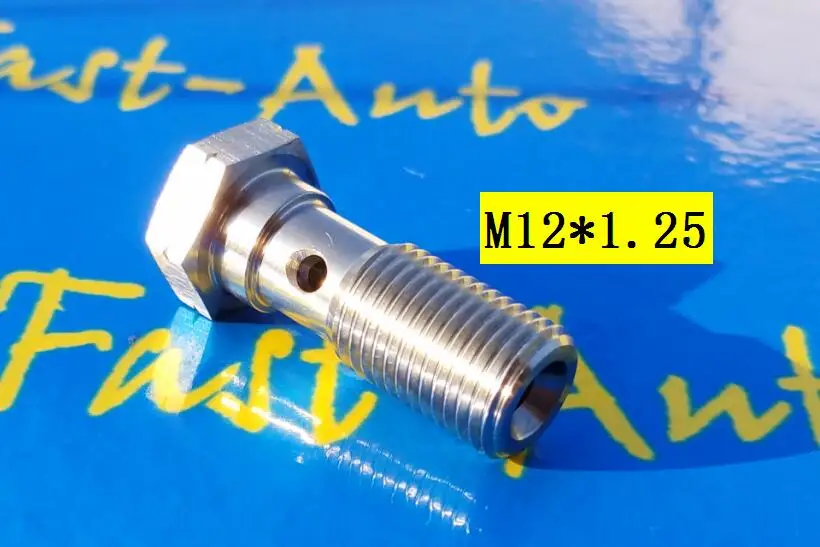

2. Banjo Bolt is also 12x1.25' get the washers as well !! x1
M12 p2.5 m12 * 1, 5 m12 x 1,25 Hohl schraube Brems adapter Adapter tpfe ptfe Brems schlauch anschluss - AliExpress 34
Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com
works for me ! this is the description, "M12 P1.25 M12 * 1.25 M12 x 1.25 Banjo bolt brake Adapter adaptor tpfe ptfe brake hose fitting"

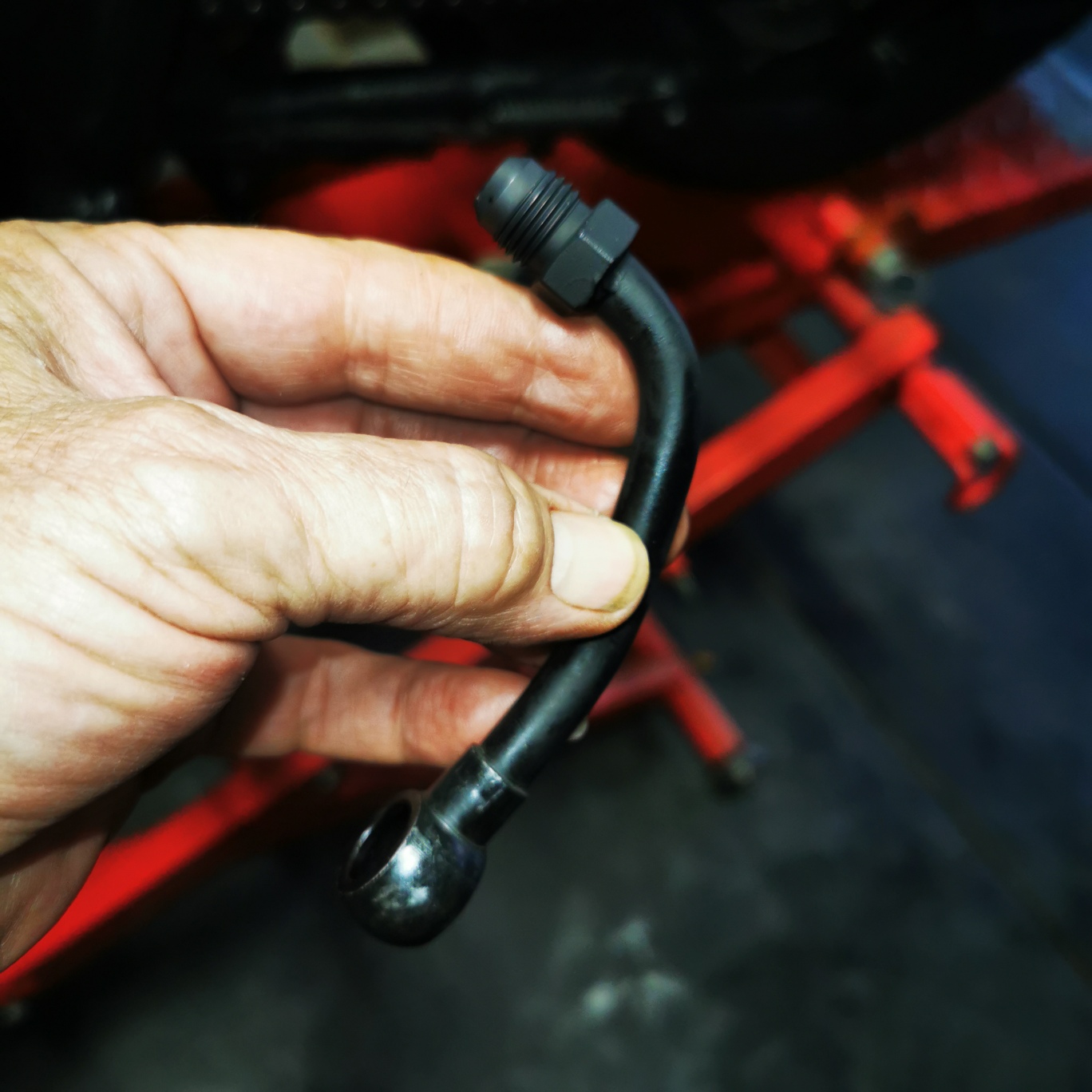

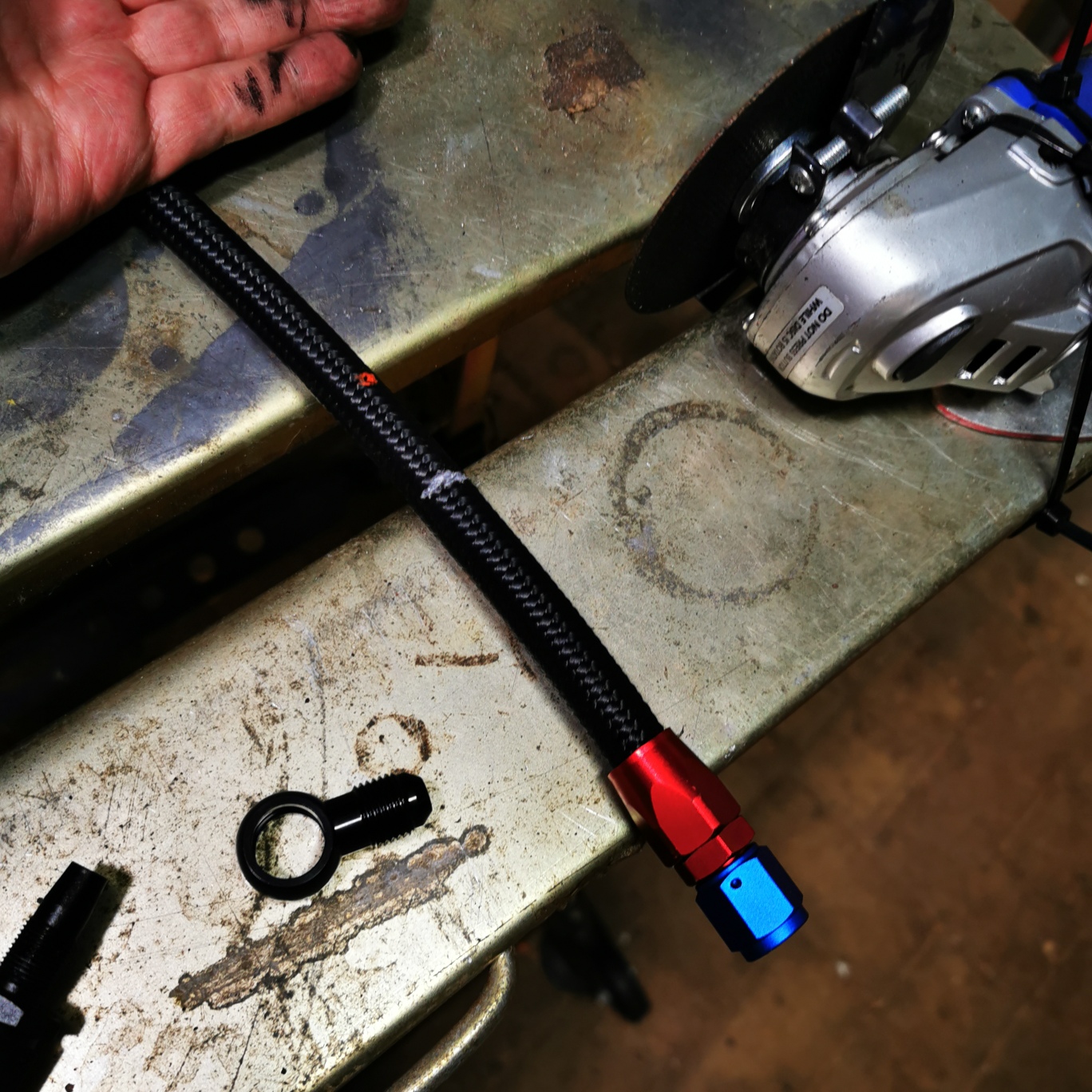

then you need Hose ends,
They are AN ( Army Navy ) fittings and it is AN-6 Hose I am using.

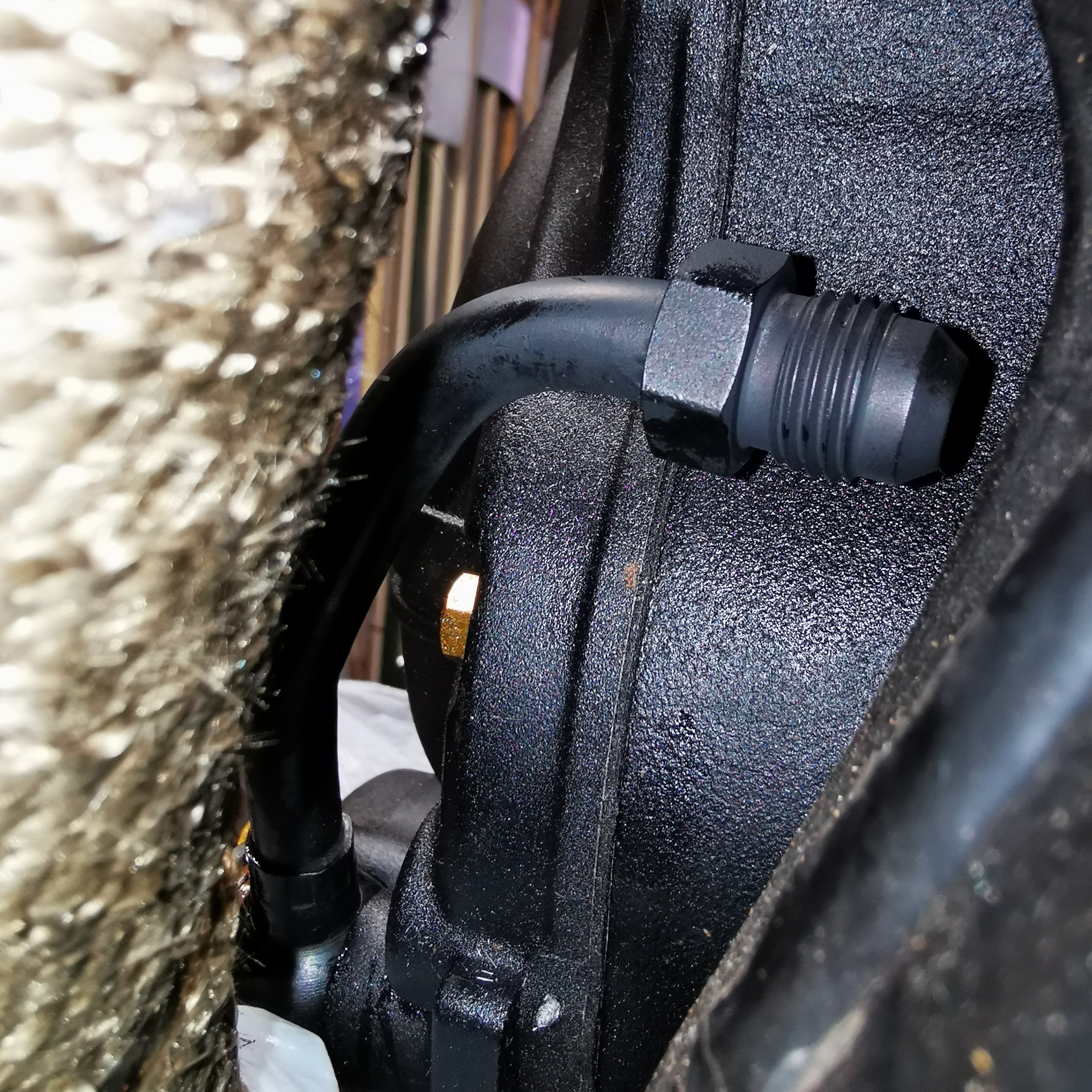

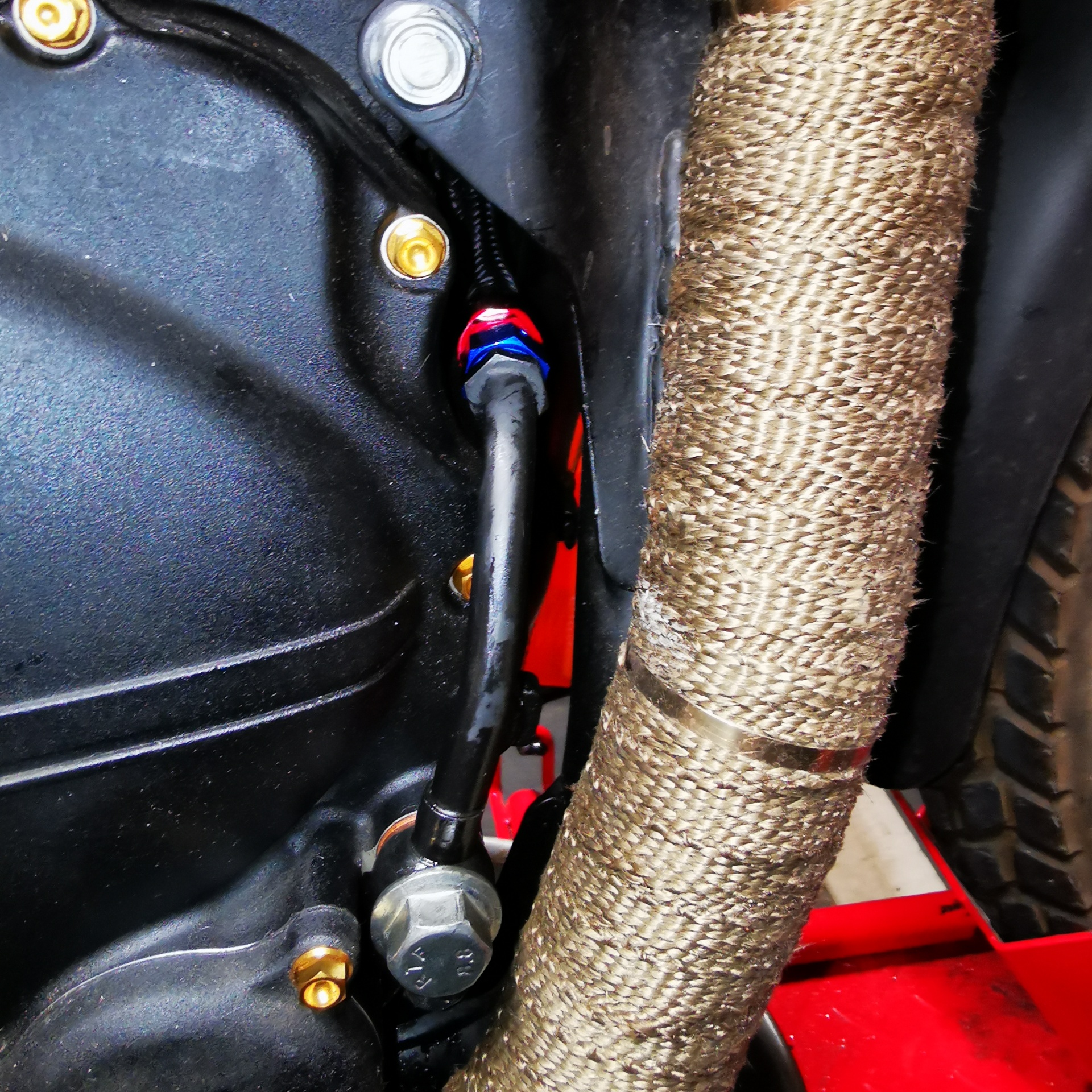

You need 2 for the Engine and 2 for the cooler, easy way is 14mm banjo hose ends at the engine and 1 of 12mm banjo hose end at the cooler at the top and a straight AN-6 hose end going to the bottom of the cooler where you need a 12mmx1.25 to AN6 fitting, comes with an O ring.
Auto motorrad hydraulische edelstahl nylon AN6 schlauch fitting banjo 12mm 14mm Montage - AliExpress 34
Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com
2 of these for the engine.
Auto motorrad hydraulische edelstahl nylon AN6 schlauch fitting banjo 12mm 14mm Montage - AliExpress 34
Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com

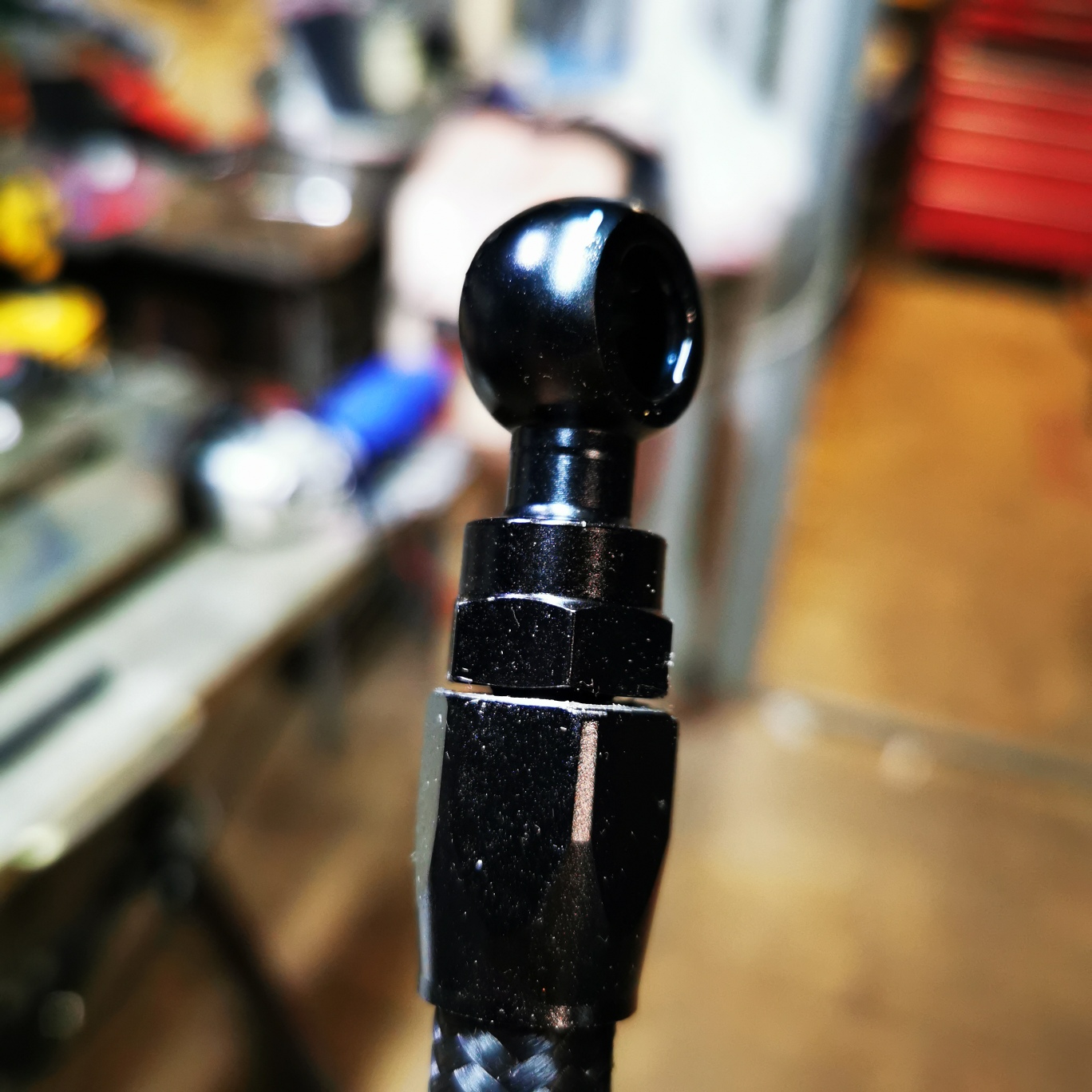

Only 1 of these for the top of the cooler.
Aluminiumst ecker m12 p2.5 m12 * 1, 5 m12 x 1,25 bis-6an an6 und 6 Stecker Adapter Adapter passend schwarz - AliExpress 34
Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com

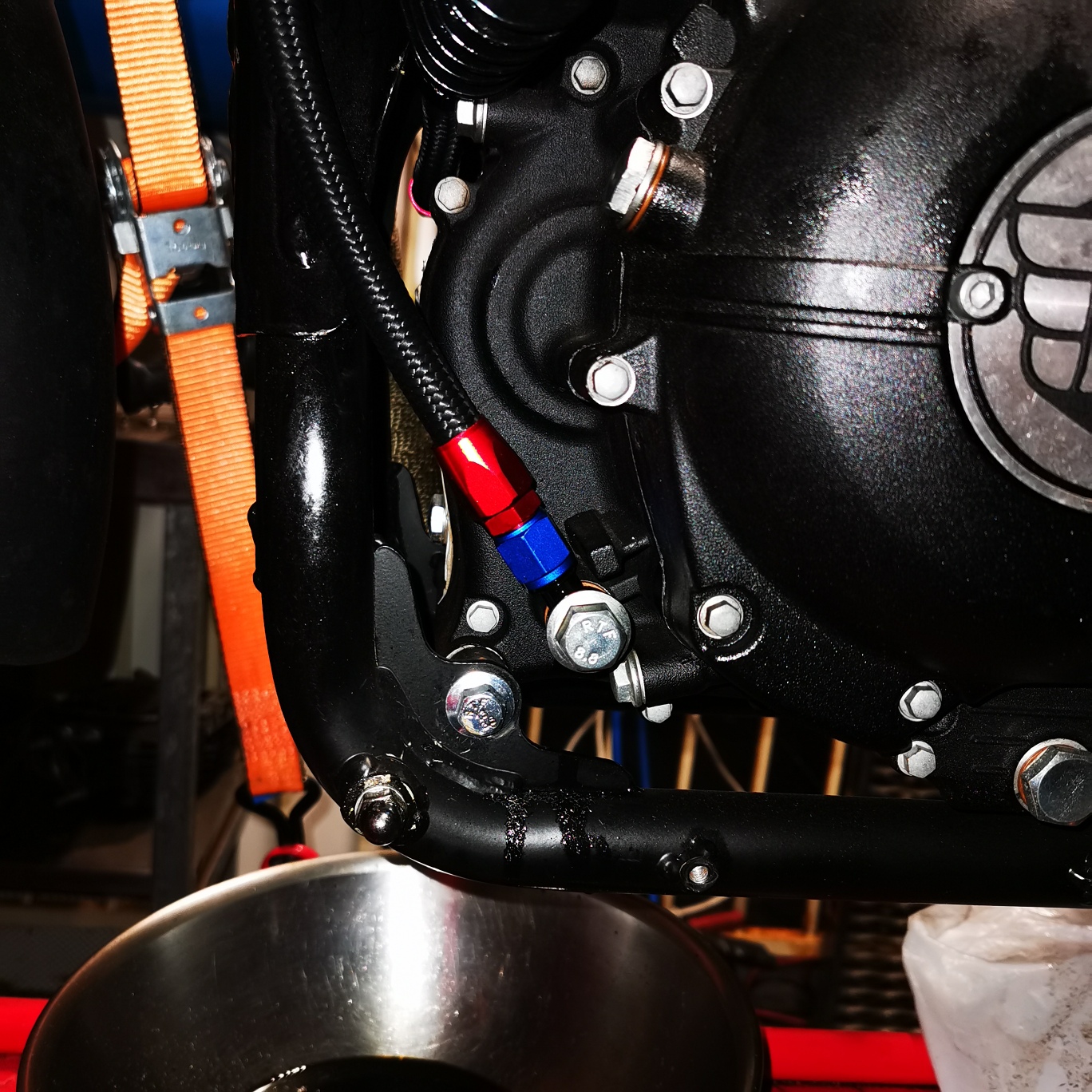

This Nipple is the bottom of the cooler. "aluminum male M12 P1.25 M12 * 1.25 M12 x 1.25 to -6an an6 an 6 male adaptor adapter Fitting black"
1PCS AN6 AN8 AN10 Gerade 45 90 120 180 Grad Öl Kraftstoff Swivel Schlauch End Fitting Öl Schlauch Ende adapter - AliExpress 34
Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com
That is the last fitting AN6 you want the straight one.
1M/3M/6M AN4 AN6 AN8 AN10 Kraftstoff Schlauch Öl Gas Kühler Schlauch Linie Rohr rohr Nylon Edelstahl Geflochtene Innen CPE Gummi - AliExpress 34
Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com

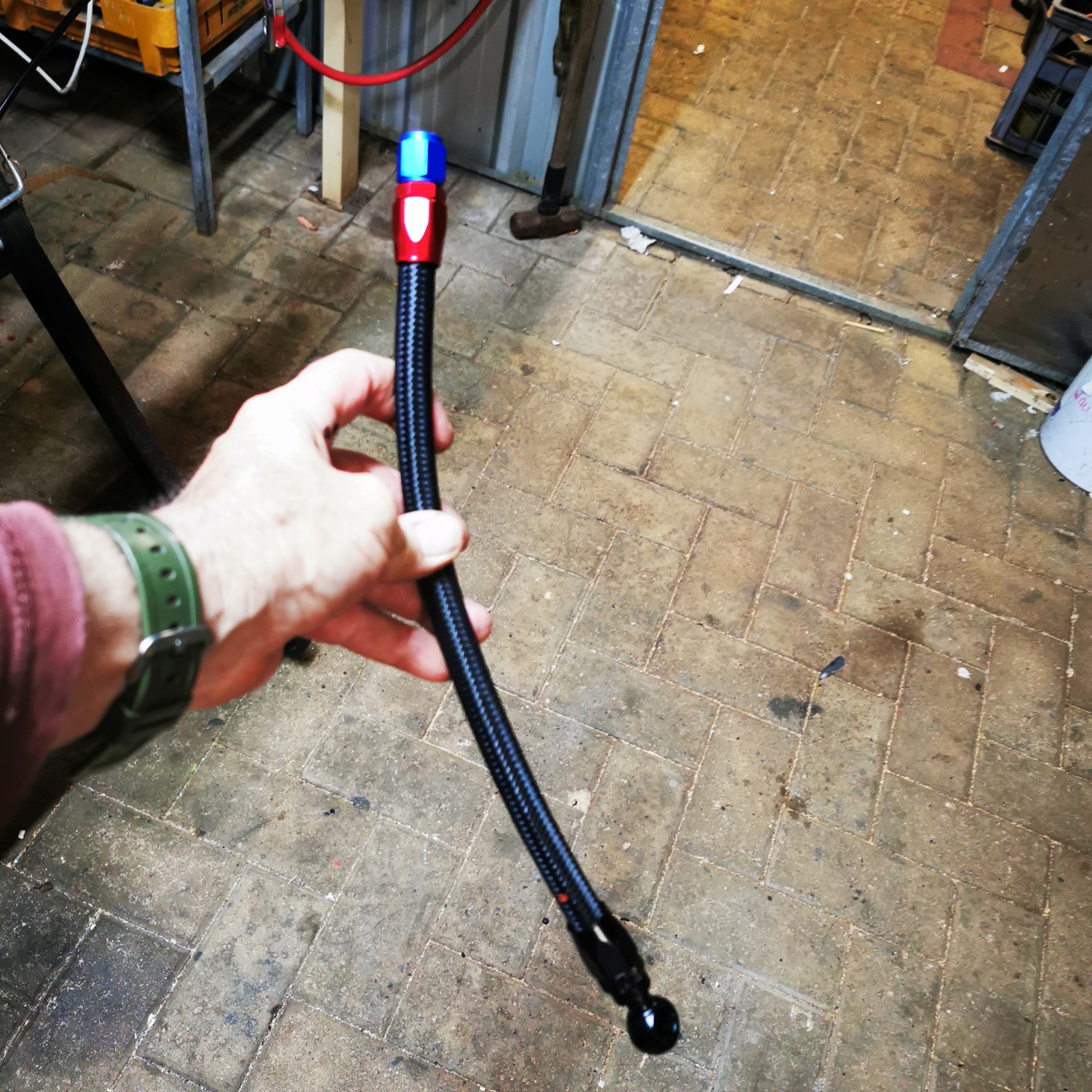

1 M of hose is enough for two bikes, or a few attempts at making hoses etc and probably the minimum anyhow
